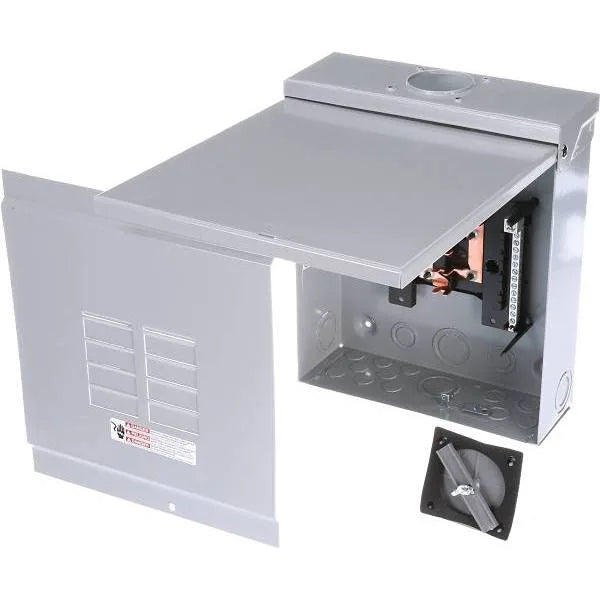

Siemens Eq 125a 8-Space 16-Circuit Main Lug Outdoor Load Center
by My Store
W0816ML1125CU
Original price
$81.10
-
Original price
$81.10
Original price
$81.10
$81.10
-
$81.10
Current price
$81.10
- Siemens EQ 125 Amp 8-Space 16-Circuit Main Lug Outdoor Load Center
- For Use As A Main Lug Load Center
- Suitable For Use As Service Entrance Equipment When A Main Breaker Is Installed
- Nema 3r Rated For Outdoor Use
- G90 Hot-Dipped, Galvanized-Carbon-Steel Enclosure Helps Provide Corrosion Protection And Has A Hinged Door That Can Be Removed By Backing Out 1 Screw
- Powder-Coating Of Polyester Paint Using Electrostatic Process Enhances Corrosion Protection And Gives A Great-Looking Finish, Free Of Drips And Runs
- 1-Piece Copper Buss Bar Is Designed For Use Only With Circuit Breakers (Not Included) And Offers Excellent Conductivity
- Single-Phase
- 3-Wire
- 120/240 Vac
- 100,000 Air
- Insta-Wire For Quick Conductor Installation
- Ideal For Use Where The Environment Can Become Severe, Such As On Farms And Near Coastal Areas
- Ansi-Certified And Ul-Listed
- Convertible From A Main Lug Load Center To A Main Breaker Load Center
- MFG# W0816ML1125CU
