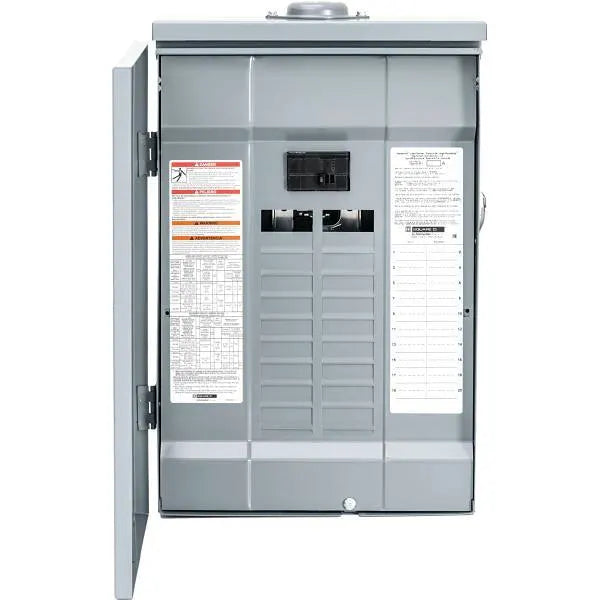

Square D Homeline 100a 20-Space 40-Circuit Outdoor Main Breaker Load Center
by My Store
HOM2040M100PRB
Original price
$161.88
-
Original price
$161.88
Original price
$161.88
$161.88
-
$161.88
Current price
$161.88
- Square D Homeline 100A 20-Space 40-Circuit Outdoor Main Breaker Load Center
- Includes A Fully Distributed Neutral Bar, Allowing For The Installation Of Homeline Plug-On Neutral Combination Arc Fault Breakers On Any Space
- Each Pole Space Accepts Full-Size, Tandem Or Quad Breakers
- Ground And Neutral Bars Accept Up To (3) #10-14 Equipment Grounds
- Includes A Rainproof Outdoor Cover
- Accommodates Plug-On Secondary Surge Arrestor (Sold Separately)
- Main Feeders Terminate From The Top, Feeders Can Enter From Any Direction, However, Device Cannot Be Rotated
- Single-Phase
- Rated 120/240 Vac And 22,000 Air Short Circuit Current Rating
- Rainproof Cover Features A Stainless Steel Hasp That Is Easily Padlocked For Safety From Theft
- Designed With Straight-In Mains To Save Expensive Cable And Time
- Distributed Split Branch Neutral With Terminal Screws Backed Out Offering With Up To 50% More Terminals Than Ul Requires Increases Wiring Flexibility Saving Installation Time And Simplifies Wiring
- Thermoplastic Interior Assembly Is Among The Most Rugged In The Industry
- Slot/Square Drive Screws Let You Use Either Standard Flat Blade Screwdriver Or Square-Head Driver For Positive Drive And Proper Torque
- MFG# HOM2040M100PRB
