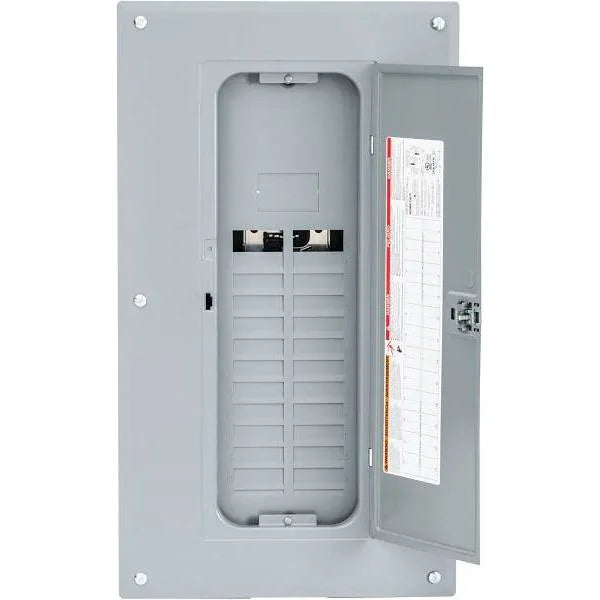

Square D Homeline 125a 20-Space Plug-On Neutral 40-Circuit Load Center W/ Cover
by My Store
BRP08B200RF
Original price
$79.32
-
Original price
$79.32
Original price
$79.32
$79.32
-
$79.32
Current price
$79.32
- Square D Homeline 125A 20-Space 40-Circuit Load Center W/ Cover, Plug-On Neutral
- Square D Homeline 125 Amp 20-Space 40-Circuit Indoor Main Lug Plug-On Neutral Load Center With Cover
- Includes A Fully Distributed Neutral Bar, Allowing For The Installation Of Homeline Plug-On Neutral Combination Arc Fault Breakers On Any Space
- Each Pole Space Accepts Full-Size, Tandem Or Quad Breakers
- Ground And Neutral Bars Accept Up To (3) #10-14 Equipment Grounds
- Includes A Combination Flush/Surface Cover And Is Convertible To Main Breaker Load Center With A Qom1 Main Breaker (Sold Separately)
- Accommodates Plug-On Secondary Surge Arrestor (Sold Separately)
- Overhead/Underground Feed Simply By Rotating The Device Before Installing
- Single-Phase, Nema 1 Rating For Indoor Use
- Rated 120/240 Vac And 65,000 Air Short Circuit Current Rating
- Automatic Flush Adjusting Cover Requires Less Time To Complete The Job
- Designed With Straight-In Mains To Save Expensive Cable And Time
- Distributed Split Branch Neutral With Terminal Screws Backed Out Offering With Up To 50% More Terminals Than Ul Requires Increases Wiring Flexibility Saving Installation Time And Simplifies Wiring
- Thermoplastic Interior Assembly Is Among The Most Rugged In The Industry
- MFG# HOM2040L125PC
