Square D Homeline 200a 30-Space 60-Circuit Indr Main Breaker Plug-On
by My Store
HOM3060M200PCVP
Original price
$198.22
-
Original price
$198.22
Original price
$198.22
$198.22
-
$198.22
Current price
$198.22
- Square D Homeline 200A 30-Space 60-Circuit Indr Main Breaker Plug-On
- Includes A Fully Distributed Neutral Bar, Allowing For The Installation Of Homeline Plug-On Neutral Combination Arc Fault Breakers On Any Space
- Each Pole Space Is Compatible With A Square D Homeline Full-Size, Tandem Or Quad Breakers
- Ground And Neutral Bars Accept Up To (3) #10-14 Equipment Grounds

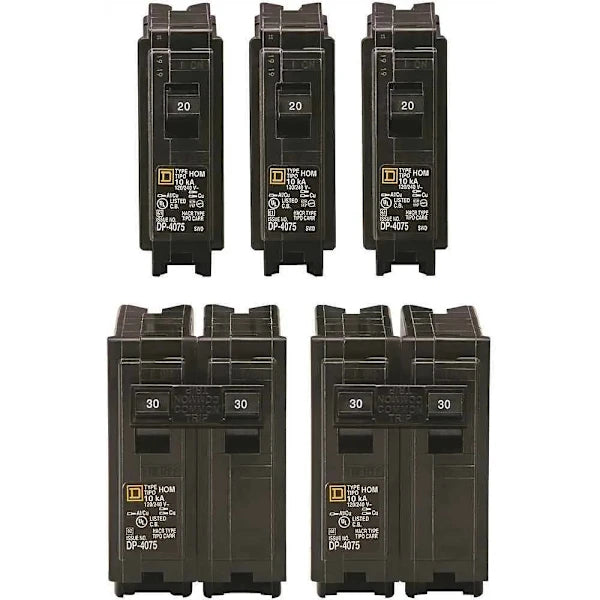

- Includes (3) Hom120 Homeline 20 Amp Single-Pole Circuit Breakers, (2) Hom230 Homeline 30 Amp Double-Pole Circuit Breakers And A Combination Flush/Surface Cover
- Accommodates Plug-On Secondary Surge Arrestor (Sold Separately)
- Overhead/Underground Feed Simply By Rotating The Device Before Installing
- Single Phase, Indoor Main Breaker Homeline Breaker Box
- Rated 120/240 Vac And 22,000 Air Short Circuit Current Rating
- Automatic Flush Adjusting Cover Requires Less Time To Complete The Job
- Designed With Straight-In Mains To Save Expensive Cable And Time
- Distributed Split Branch Neutral With Terminal Screws Backed Out Offering Up To 50% More Terminals Than Ul Requires; Increases Wiring Flexibility, Saves Installation Time And Simplifies Wiring
- Thermoplastic Interior Assembly Is Among The Most Rugged In The Industry
- Slot/Square Drive Screws Let You Use Either Standard Flat Blade Screwdriver Or Square-Head Driver For Positive Drive And Proper Torque
- MFG# HOM3060M200PCVP
