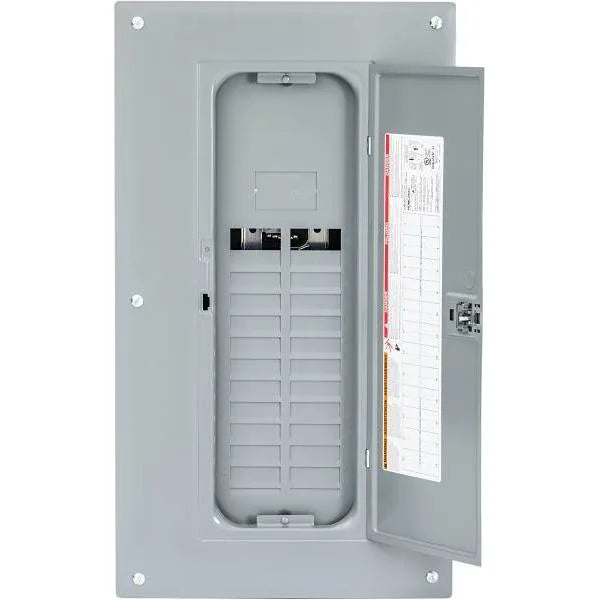

Square D Homeline 125a 24-Space 48-Circuit Load Center Qwik-Grip Plug-On Neutral
by My Store
HOM2448L125PQGC
Original price
$109.68
-
Original price
$109.68
Original price
$109.68
$109.68
-
$109.68
Current price
$109.68
- Homeline 125 Amp 24-Space 48-Circuit Indoor Main Lug Qwik-Grip Plug-On Neutral Load Center with Cover, Ground Bar
- Innovative Cable Entry System Quickly Grips The Branch Wires While Eliminating Steel Ko'S And Cable Connectors For A Faster Installation
- Includes A Fully Distributed Neutral Bar, Allowing For The Installation Of Homeline Plug-On Neutral Combination Arc Fault Breakers On Any Space
- Each Pole Space Accepts Full-Size, Tandem Or Quad Breakers
- Ground And Neutral Bars Accept Up To (3) #10-14 Equipment Grounds
- Includes A Pk15gtal Ground Bar, A Combination Flush/Surface Cover And Is Convertible To Main Breaker Load Center With A Qom1 Main Breaker (Sold Separately)
- Accommodates Plug-On Secondary Surge Arrestor (Sold Separately)
- Overhead/Underground Feed Simply By Rotating The Device Before Installing
- Single-Phase
- Rated 120/240 Vac And 65,000 Air Short Circuit Current Rating
- Automatic Flush Adjusting Cover Requires Less Time To Complete The Job
- Designed With Straight-In Mains To Save Expensive Cable And Time
- Distributed Split Branch Neutral With Terminal Screws Backed Out Offering With Up To 50% More Terminals Than Ul Requires Increases Wiring Flexibility Saving Installation Time And Simplifies Wiring
- Thermoplastic Interior Assembly Is Among The Most Rugged In The Industry
- Slot/Square Drive Screws Let You Use Either Standard Flat Blade Screwdriver Or Square-Head Driver For Positive Drive And Proper Torque
- MFG# HOM2448L125PQGC
